Protect Arcadia Application with Declarative WAF¶

Warning

ONLY IF YOU START THE LAB FROM HERE - ELSE DON’T READ THIS WARNING. If you want to start from here (because you are only interested by Declarative WAF), and do not want to run all the steps before, you can use Postman and Jenkins to create everything for you. To do so, follow the steps below.

Open Jenkins and run the pipeline DeployMainApp
Open Postman, and select the collection Arcadia Manual Pipeline - no CICD
Run the calls
1. Login to NGINX Controller
2. Create WebApp Application
3. Create MainApp Component
4. Create BackEnd Component
Open Jenkins and run the pipeline DeployApp2
Open Postman, and select the collection Arcadia Manual Pipeline - no CICD
Run the call
1. Create App2 Component
Open Jenkins and run the pipeline DeployApp3

Now, Arcadia App is fully deployed and the NGINX Controller is set up.

In this module, we will deploy a WAF policy to protect Arcadia Bank application and we will publish it. With v16.0 (and in draft in v15.1), the WAF policy can be deployed via a declarative call, and the WAF policy itself is a JSON file.

Note

We use the new v15.1/v16.0 Declarative WAF policy. You can retrieve the JSON Policy in the GitLab repo and below.

Note

You can learn more on the Declarative WAF policy here : https://f5.sharepoint.com/sites/EMEASystemsEngineering/SitePages/Adv.-WAF-v16.0-Declarative-API.aspx

{
    "policy": {
        "name": "policy-fund-1",
        "description": "Policy Example - Rapid Deployment",
        "template": {
            "name": "POLICY_TEMPLATE_RAPID_DEPLOYMENT"
        },
        "enforcementMode": "blocking",
        "server-technologies": [
            {
                "serverTechnologyName": "MySQL"
            },
            {
                "serverTechnologyName": "Unix/Linux"
            },
            {
                "serverTechnologyName": "MongoDB"
            }
        ],
        "signature-settings": {
            "signatureStaging": false
        },
        "policy-builder": {
            "learnOnlyFromNonBotTraffic": false
        },
        "response-pages": [
            {
                "responsePageType": "ajax",
                "ajaxEnabled": true,
                "ajaxPopupMessage": "My customized popup message! Your support ID is: <%TS.request.ID()%>"
            }
            ]
    }
}

Note

You can notice this JSON policy is based in Rapid Deployment template and we added few things like Server-Technologies, Signature Staging, Policy Buidler and Response Page.

Step 1 - Send an attack¶

In Chrome, in Arcadia web application, refer a friend
1. Refer bob@sponge.com
Send an attack with the below payload in the refer friend field
{\"$ne\":\"michael@gmail.com\"}
Note

This attacks means return everything not equals to michael@gmail.com

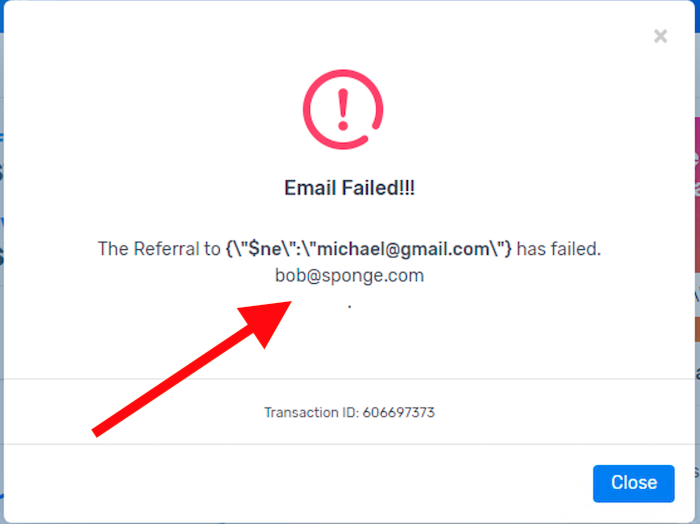

Attack succeed and you can get the DB content

Step 2 - Push AS3 declaration to deploy the WAF policy¶

Note

It is important to understand what we are doing here. We are leveraging all the new v16.0 Adv. WAF Declarative policy features. With one API call (done by Jenkins and Ansible), we will deploy a new AS3 declaration with a WAF policy.

Check the files used here¶

In Gitlab, open Administrator / as3-waf project
You can see several files, but the most important are
1. playbook-v16.yaml
2. as3-v16.json
3. policy-fund-1.json

Open policy-fund-1.json

{
    "policy": {
        "name": "policy-fund-1",
        "description": "Policy Example - Rapid Deployment",
        "template": {
            "name": "POLICY_TEMPLATE_RAPID_DEPLOYMENT"
        },
        "enforcementMode": "blocking",
        "server-technologies": [
            {
                "serverTechnologyName": "MySQL"
            },
            {
                "serverTechnologyName": "Unix/Linux"
            },
            {
                "serverTechnologyName": "MongoDB"
            }
        ],
        "signature-settings": {
            "signatureStaging": false
        },
        "policy-builder": {
            "learnOnlyFromNonBotTraffic": false
        },
        "response-pages": [
            {
                "responsePageType": "ajax",
                "ajaxEnabled": true,
                "ajaxPopupMessage": "My customized popup message! Your support ID is: <%TS.request.ID()%>"
            }
            ]
    }
}

Note

This is our declarative JSON WAF policy

Open as3-v16.json

{
    "class": "AS3",
    "action": "deploy",
    "persist": true,
    "declaration": {
        "class": "ADC",
        "schemaVersion": "3.2.0",
        "id": "Prod_Web_AS3",
        "Web-Prod": {
            "class": "Tenant",
            "defaultRouteDomain": 0,
            "arcadia": {
                "class": "Application",
                "template": "generic",
                "VS_WebApp": {
                    "class": "Service_HTTPS",
                    "remark": "Accepts HTTPS/TLS connections on port 443",
                    "virtualAddresses": ["10.1.10.26"],
                    "redirect80": false,
                    "pool": "pool_NGINX_WebApp",
                    "policyWAF": {
                        "use": "Arcadia_WAF_policy"
                    },
                    "securityLogProfiles": [{
                        "bigip": "/Common/Log all requests"
                    }],
                    "profileTCP": {
                        "egress": "wan",
                        "ingress": { "use": "TCP_Profile" } },
                    "profileHTTP": { "use": "custom_http_profile" },
                    "serverTLS": { "bigip": "/Common/arcadia_client_ssl" }
                },
                "Arcadia_WAF_policy": {
                    "class": "WAF_Policy",
                    "url": "http://10.1.20.4/root/as3-waf/-/raw/master/policy-fund-1.json",
                    "ignoreChanges": true
                },
                "pool_NGINX_WebApp": {
                    "class": "Pool",
                    "monitors": ["http"],
                    "members": [{
                        "servicePort": 8080,
                        "serverAddresses": ["10.1.20.10"]
                    }]
                },
                "custom_http_profile": {
                    "class": "HTTP_Profile",
                    "xForwardedFor": true
                },
                "TCP_Profile": {
                    "class": "TCP_Profile",
                    "idleTimeout": 60 }
            }
        }
    }
}

Note

In this AS3 declaration, you can notice the new v16.0 Adv. WAF Reference section (Arcadia_WAF_policy). This section refers to our external JSON policy file, and will upload, import and apply the policy in the BIG-IP.

Open playbook-v16.yaml`

---

- hosts: bigip
connection: local
gather_facts: false
vars:
    my_admin: "admin"
    my_password: "admin"
    bigip: "10.1.1.12"

tasks:
- name: Deploy AS3 WebApp
    uri:
    url: "https://{{ bigip }}/mgmt/shared/appsvcs/declare"
    method: POST
    headers:
        "Content-Type": "application/json"
        "Authorization": "Basic YWRtaW46YWRtaW4="
    body: "{{ lookup('file','as3-v16.json') }}"
    body_format: json
    validate_certs: no
    status_code: 200

Note

You can see the playbook is very simple in v16.0 thanks to the AS3 call. It will do all the job for us. This playbook is just sending an AS3 declaration call to the BIGIP.

Run the CI/CD pipeline¶

In Jenkins, click on DeployWAF pipeline
Run the pipeline
In Chrome, launch an incognito window, and retry the attack
{\"$ne\":\"michael@gmail.com\"}

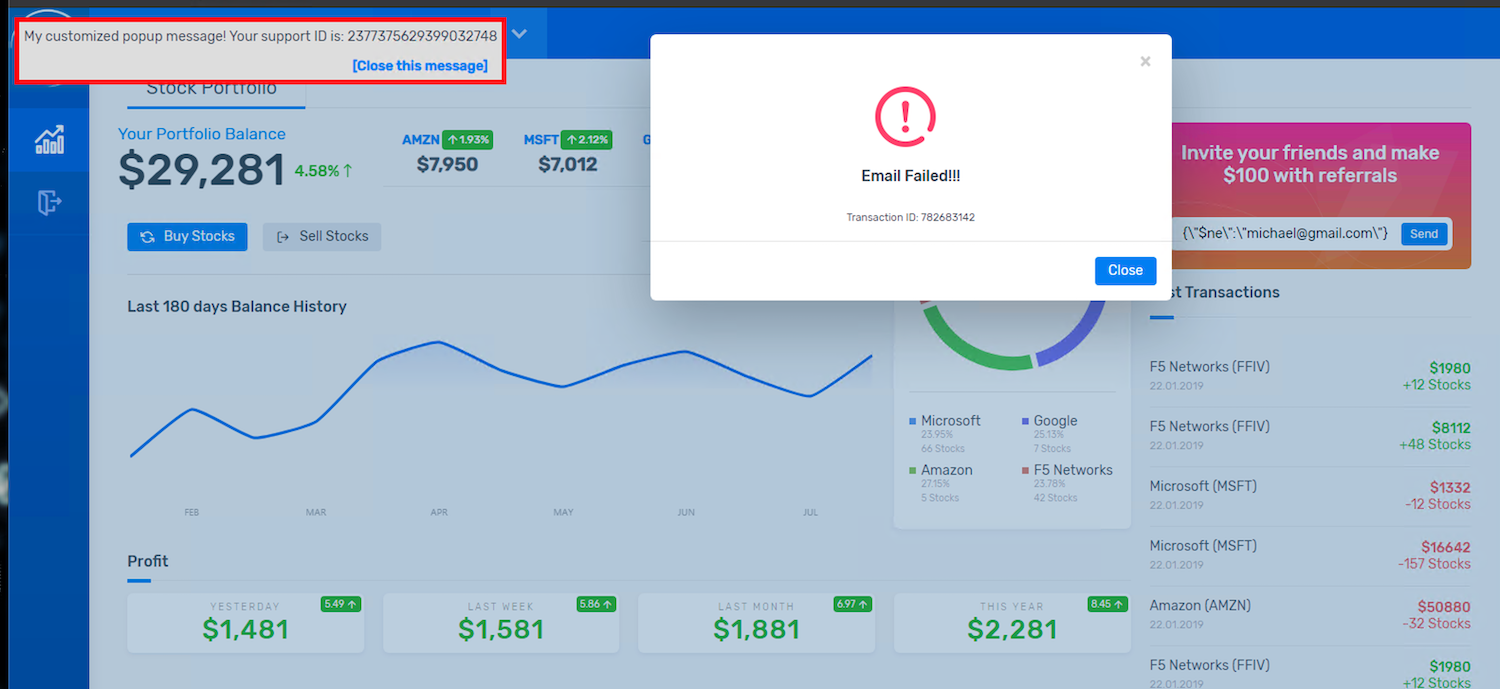

Attack fails and you can notice the AJAX blocking page set in the JSON declarative WAF policy
Check logs in the BIG-IP
