DevOps deploy Arcadia Application - Main app¶
In this module, we will deploy the 2 main containers for Arcadia Bank application and we will publish them.
Note
At the end of this module, Arcadia Bank application will look like this.
Note
As a DevOps, you will deploy Arcadia Application (main and back end pods) with an automation tool set
Step 1 - Deploy Arcadia Main app with a CI/CD pipeline like a DevOps¶
Connect to Jumhost RDP and Login as user / user
Open
Chrome
, you can notice Chrome opens all the tabs for youLogin to all tools
Controller : admin@nginx-udf.internal / admin123!
Jenkins : admin / admin
GitLab : root / F5twister$
Warning
If GitLab does not start, restart the docker in the GitLab VM (WebSSH > docker restart gitlab). Wait 5 minutes.
Kubernetes : click on
skip
BIG-IP : admin / admin
In Gitlab, click on Administrator / Arcadia-MainApp
Click on file
deploy
Click
edit
and make a modification, likeYES !!!!!
Click
Commit changes
Note
At this moment, you simulate a commit like a DevOps. This commit
will trigger a webhook
to Jenkins
, so that Jenkins executes a pipeline
.
In Jenkins, click on
DeployMainApp
pipelineA pipeline is running, click on it
You can follow the steps
Note
At this stage, Arcadia Main app and Back End app are deployed un K8S. But you need to publish them with NGINX+ via the controller.
Step 2 - Publish Arcadia application with NGINX+ and Controller¶
The Jenkins pipeline did several things
Deployed Arcadia application (main and back end pods) in Kubernetes
Connect to
Kubernetes
and check that.You can see 2 deployments (main and back) with nodeports services
Started 3 NGINX+ instances in a docker
WebSSH to
CICD and DOCKER (NGINX API gw, Dev Portal)
Run a
docker ps
ubuntu@ip-10-1-1-9:~$ docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES bf86e23a9807 nginx-plus:36v1 "sh /entrypoint.sh" 33 seconds ago Up 31 seconds 10.1.20.9:8080->80/tcp, 10.1.20.9:8443->443/tcp NginxPlusAPI 74d679bdf5fb nginx-plus:36v1 "sh /entrypoint.sh" 33 seconds ago Up 31 seconds 80/tcp, 10.1.20.12:8090->8090/tcp NginxPlusDevPortal ac12c0f3148a nginx-plus:36v1 "sh /entrypoint.sh" 33 seconds ago Up 32 seconds 10.1.20.10:8080->80/tcp, 10.1.20.10:8443->443/tcp NginxPlusWebApp ab75d7bd60bb nginx "nginx -g 'daemon of…" 7 months ago Up 13 hours 0.0.0.0:80->80/tcp lab-nginx 35ddc5adc34d sameersbn/bind:9.11.3-20190706 "/sbin/entrypoint.sh…" 9 months ago Up 13 hours 0.0.0.0:53->53/tcp, 0.0.0.0:10000->10000/tcp, 0.0.0.0:53->53/udp bindCheck if NGINX+ instances appears in the controller
In the controller GUI, click top
left corner icon
, andinfrastructure
You can see 3 instances running
Deployed an AS3 declaration into the BIG-IP in order to publish the NGINX+ instance externally
Note
It is time to configure the NGINX+ instances in order to publish Arcadia application (main and back services)
Configure the Controller
Warning
For all the commands below, there are CASE SENSITIVE
Connect to the controller (admin@nginx-udf.internal / admin123!)
Click on top
left corner icon
andServices
Click on
Apps
andcreate app
Application name :
app_webapp
Display name :
Web Application Arcadia
Environment :
Production Environment
Click
submit
Click on
Create Component
Configure the component as below
Warning
Don’t forget to click on
done
Warning
Don’t forget to click on
done
twiceNote
Click
submit
Get back to
Web App
and add a newComponent

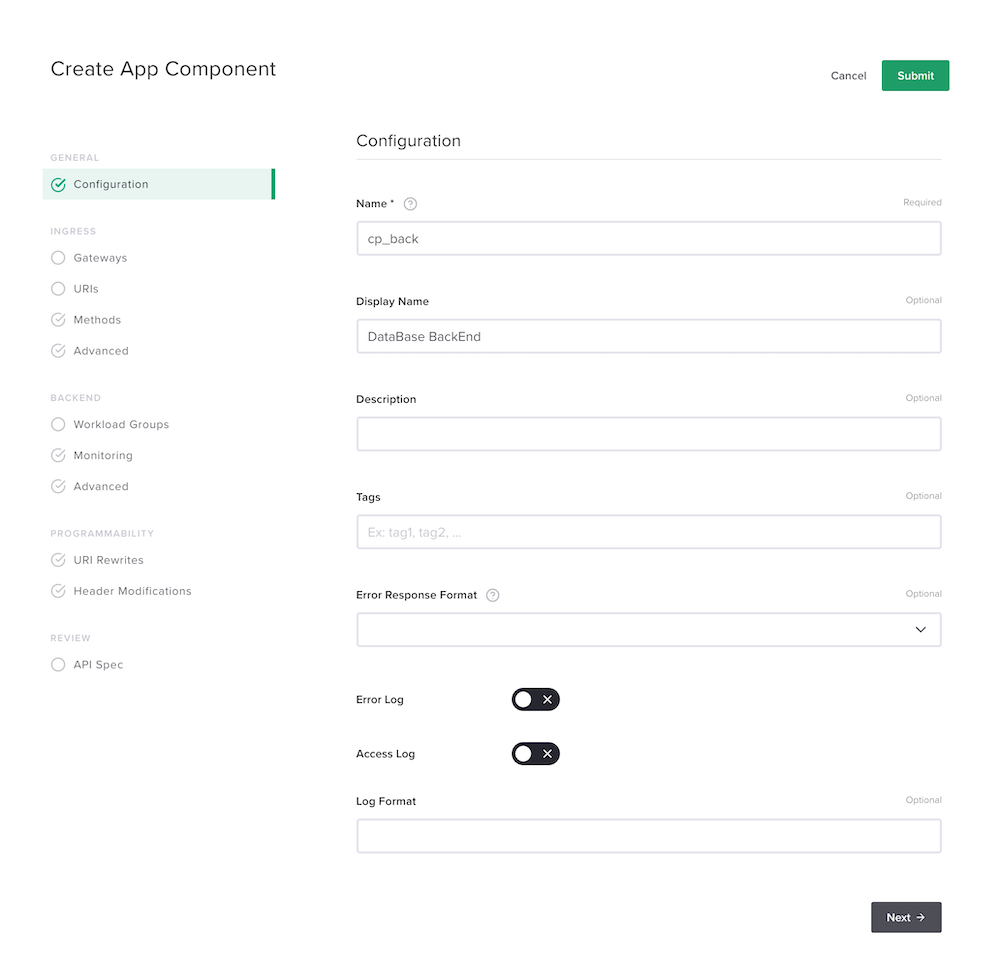

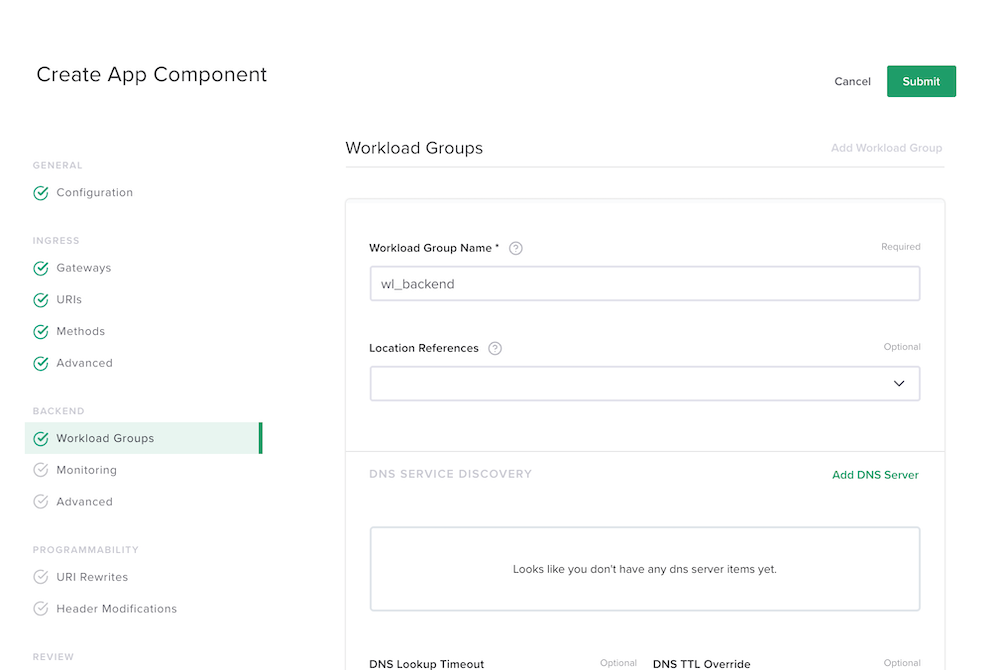

Do the same, but for the back end service
Warning
Don’t forget to click on
done
Warning
Don’t forget to click on
done
twiceNote
Click
submit
Step 3 - Test your Controller deployment¶
Open
Chrome
and click on the bookmarkArcadia Finance
Click on
Login
Login as
matt
/ilovef5
You should see the
main app
wihtoutApp2
norApp3
Warning
Congratulations, you have deployed your first modern app with NGINX+ and the NGINX Controller
