Architecture of Arcadia ApplicationΒΆ

Note

We will use the famous Arcadia Finance application in this lab. This application is based on 4 microservices. You can find below the different IP addresses and Ports used by NGINX and BIG-IP.

Note

This application is available in GitLab in case you want to build your own lab : https://gitlab.com/arcadia-application

First of all, it is important to understand how Arcadia app is split between microservices

This is how Arcadia App looks like when the 4 microservices are up and running, and you can notice how traffic is routed based on URI

../../_images/arcadia-api.png

But you can deploy Arcadia Step by Step

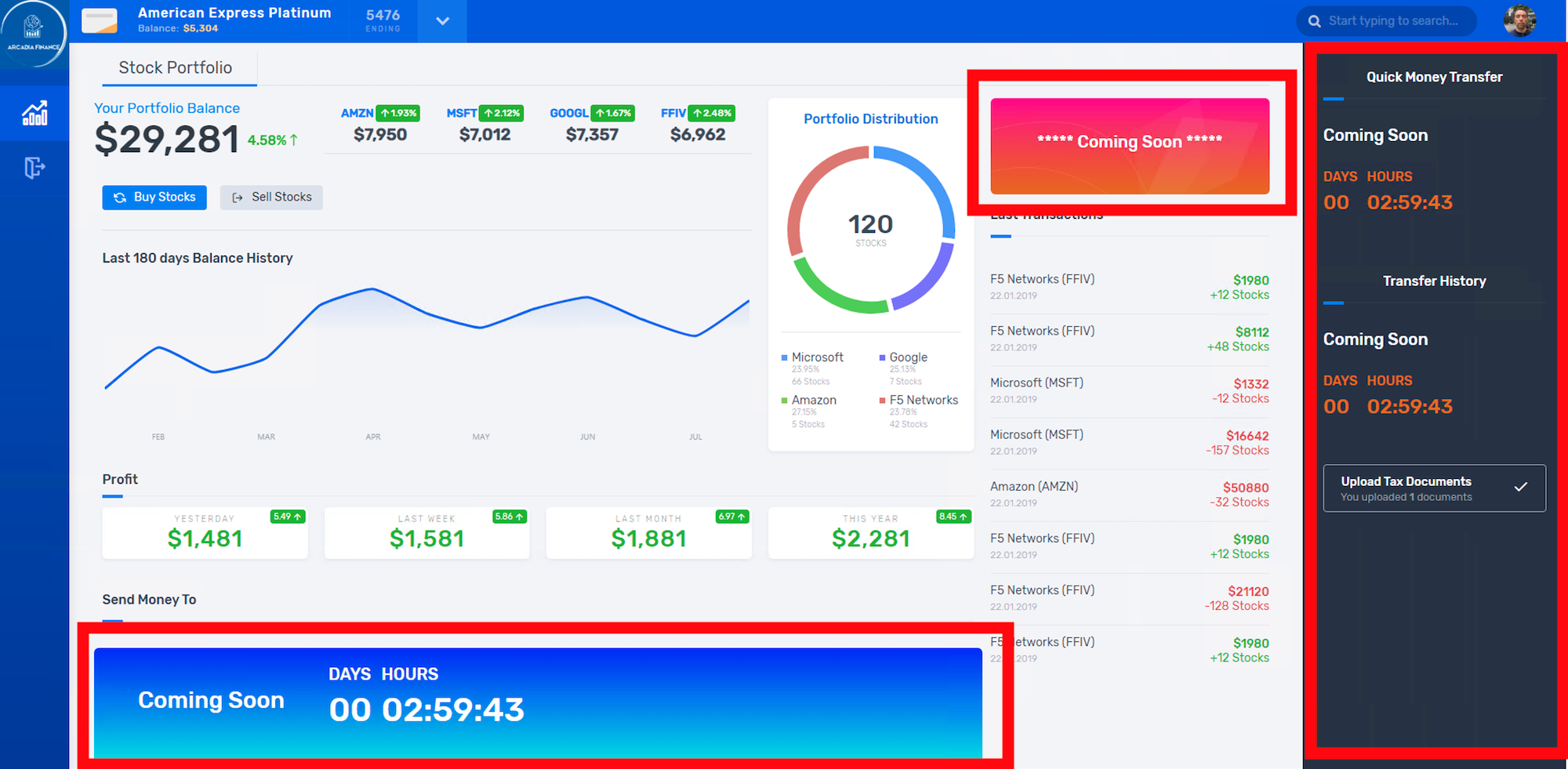

If you deploy only Main App and Back End services.

../../_images/MainApp.png

Note

You can see App2 (Money Transfer) and App3 (Refer Friend) are not available. There is dynamic content showing a WARNING instead of a 404 or blank frame.


If you deploy Main App, Back End and Money Tranfer services.

../../_images/app2.png

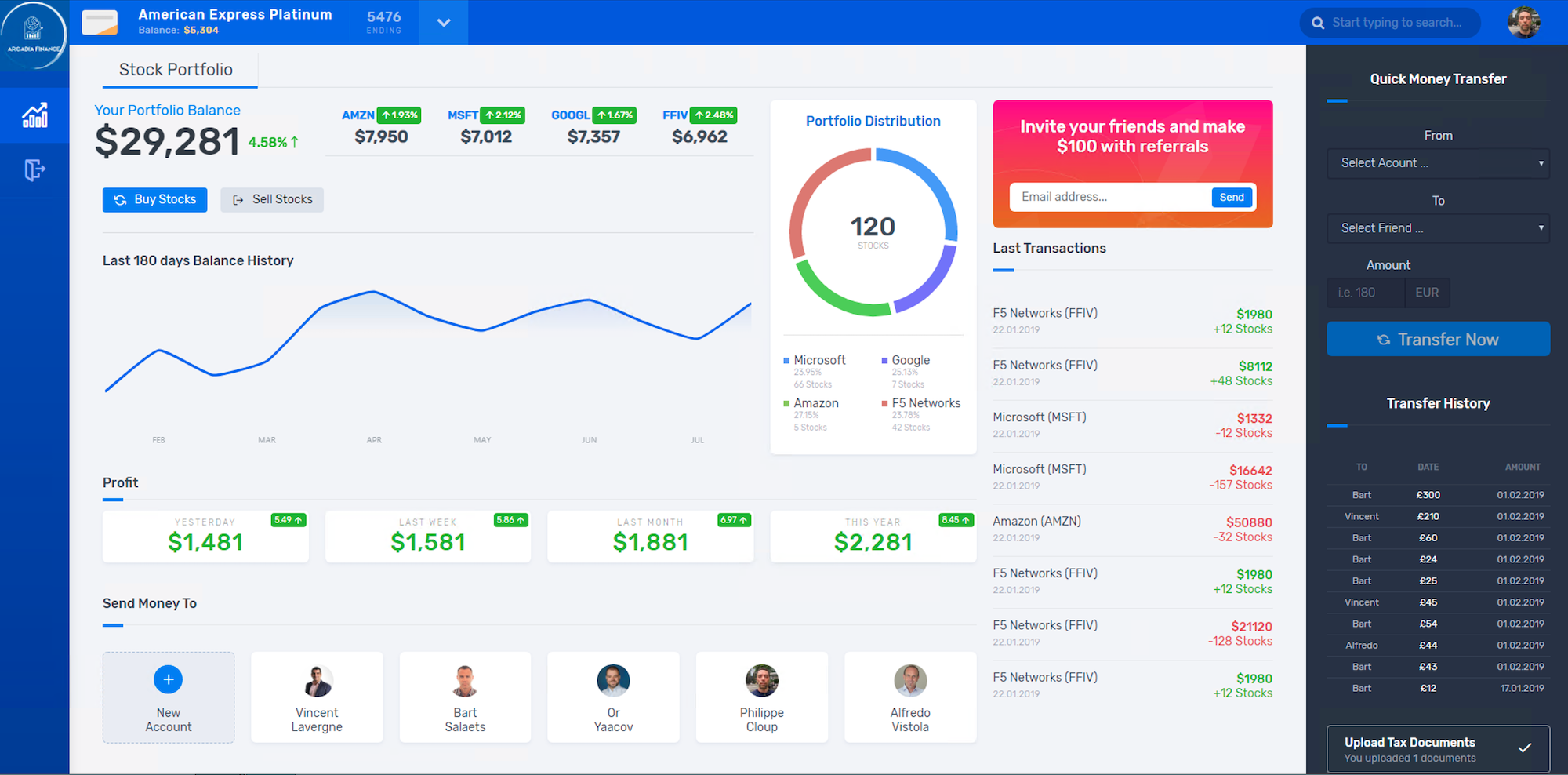

If you deploy Main App, Back End, Money Tranfer and Refer Friend services.

../../_images/app3.png

The diagram belows show the IP addresses and the ports used for all the routes

Note

For a lab standpoints, these IP addresses and ports does not change. But in a real life, they are dynamic.

../../_images/arcadia-routes.png
